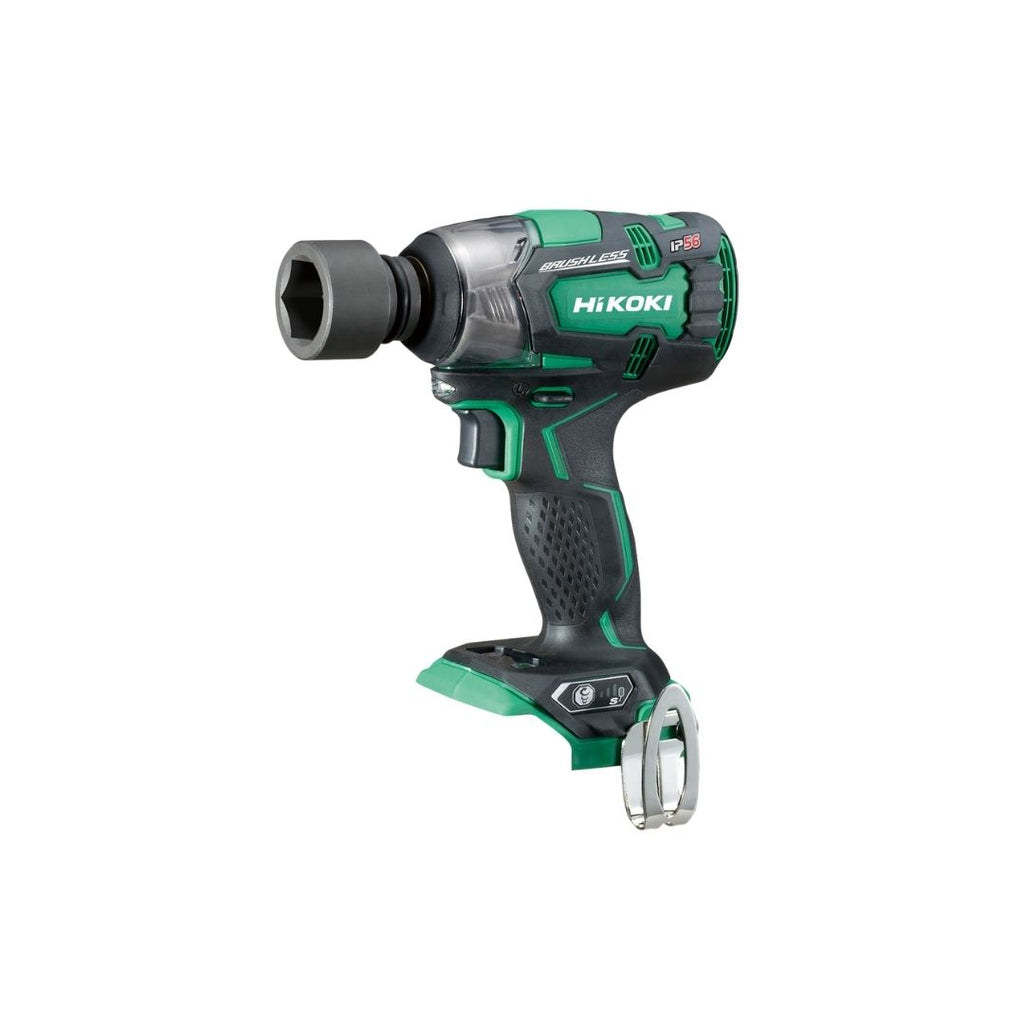

HIKOKI 18V Impact Wrench 305NM 1/2" (Machine Only)

• Our Original Brushless Motor Technology

  ► No wearing parts (carbon brushes, commutator, field coil)
  ► Our original compact controller

  Long Lifetime, Maintenance-Free

  The brushless motor offers a significantly extended product life cycle by eliminating trouble including armature burnout, layer short or commutator wear even in severe work environments. Besides, no carbon brush replacement is required.

• The max tightening torque is 305Nm for the 18V WR18DBDL2 and 285Nm for the 14.4V WR14DBDL2.
  The torque is increased by 55Nm (18V) and 50Nm (14.4V) respectively, compared to our conventional models (WR18DBDL, WR14DBDL).



• The overall length is 145mm, which is 23mm shorter than that of our conventional models
  (WR18DBDL/WR14DBDL).



When loosening M20 high-tension bolts tightened at 350 Nm.

•

  Tightening Mode Settings

  Mode	Low	Medium	High	Single
  Tightening Mode Indicator Lamp
  Applications	Light load work Installing pipe supports, scaffolding, etc.		Heavy load work Assembling steel frames, etc.	Delicate work Tightening small diameter screws, etc.

  The tightening torque depends on the material, size and class of the bolt. Make a test fastening to adjust the mode setting to suit the bolt.

• The friction ring holds a socket on the anvil, making it easier to install a pin and O-ring to securely lock the socket in place.

  Note : It is possible to temporality hold the socket in place with the friction ring, but be sure to insert the pin and attach the O-ring before use. If the power tools is used while the socket is temporarily held in place, the socket may fall off and cause an injury.



• The rear fan efficiently cools down the motor and hammer case for more durability.

  • Cordless impact driver shown for illustration purposes only.



• Less user fatigue due to the well-balanced design with the center of gravity positioned at the middle finger of the grip hand.

  • Cordless impact driver shown for illustration purposes only.



• Thanks to the unique design of dust-protective cooling windows and fully plastic coating on some important inner parts, this product conforms to IP56 protection class ratings (dust and water resistance) for electrical equipment as stipulated by the international IEC regulations.


  • The equipment has been designed to withstand the effects of dust and water, but there is no guarantee that it will not malfunction. Do not use or leave the equipment in locations where it is subject to excessive amounts of dust, or in locations where it is submerged in water or subject to rainwater. (Only the main unit conforms to the IP56 protection class ratings when equipped with a battery.)

• allows for finer adjustments in the low speed range. It is also more efficient in transferring energy resulting in longer tool life.



  Specifications

  Model		WR18DBDL2	WR14DBDL2
  Capacity	Bolt	M10 - M20 (3/8 - 3/4")
  	High Tension Bolt	M10 - M16 (3/8 - 5/8")
  Square Drive		12.7mm (1/2")
  Tightening Torque		305Nm (225ft-lbs.)	285Nm (210ft-lbs.)
  Battery Voltage		18V	14.4V
  No Load Speed	High Mode	0 - 2,700/min	0 - 2,600/min
  	Medium Mode	0 - 2,000/min
  	Low Mode	0 - 1,000/min
  	Single Mode	0 - 2,700/min	0 - 2,600/min
  Full Load Impact Rate		0 - 3,600/min	0 - 3,500/min
  Overall Length		145mm (5-11/16")
  Weight *1		1.8kg (4.0lbs.) with BSL1860, BSL1850, BSL1830 1.5kg (3.3lbs.) with BSL1830C	1.7kg (3.7lbs.)
  Vibration Total Values (triax vector sum)		Vibration Emission Value = 11.7m/s2 Uncertainty K = 1.5m/s	Vibration Emission Value = 13.4m/s Uncertainty K = 1.5m/s2
